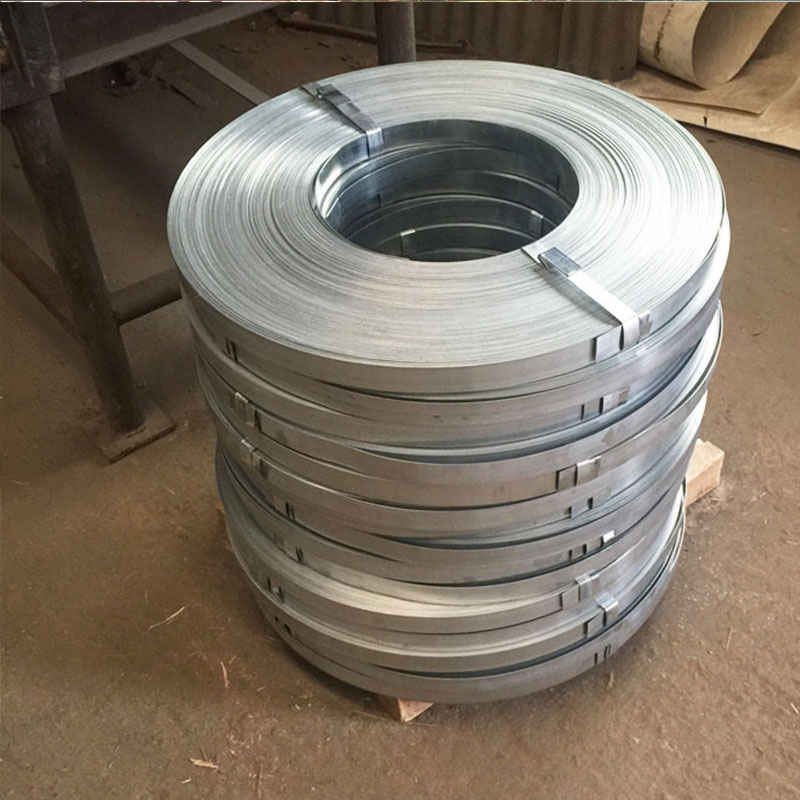

Oscillate wooden galvanized circular packing band
Product Description
Commodity |
Steel Packing Strip/Strapping/Belt |
Material | SS235,S235JR,SS400,A36,SPCC,DX51D |

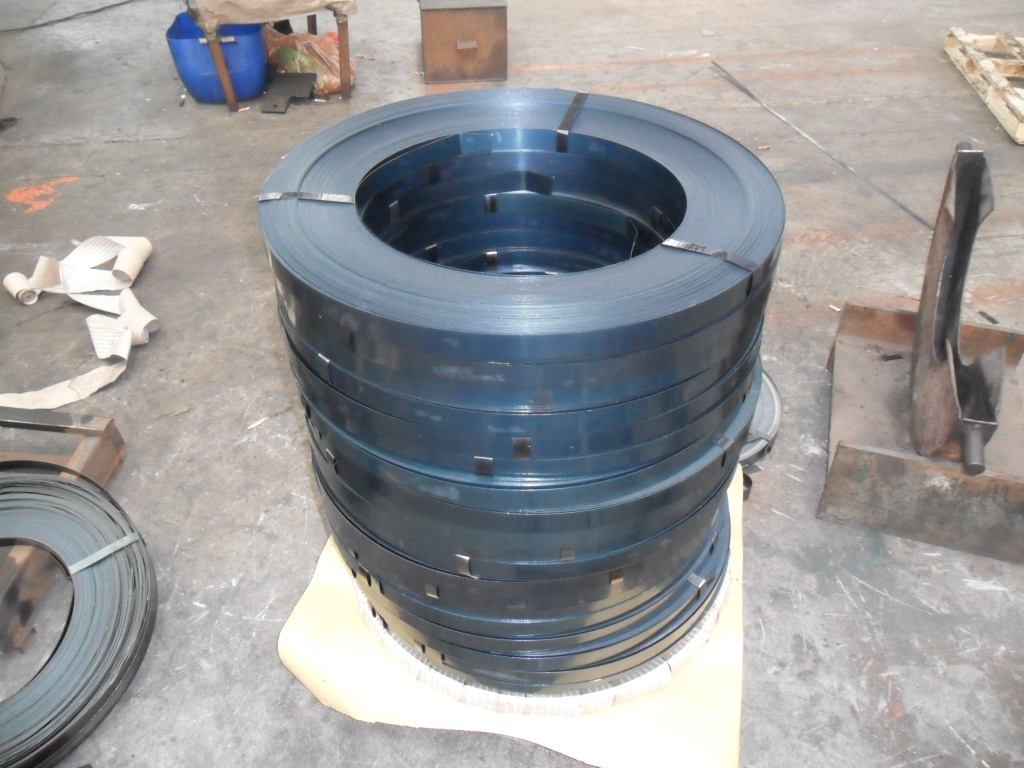

Type | 1>White Steel Packing Strips 2>Blue Steel Packing Strips 3>Paint-baked Steel Packing Strips(Black,Green,Gray,Yellow etc) |
Standard | GB,JIS,EN,DIN,ASTM |
Specification | BWG28*3/8” 1/2” 5/8”(0.36mm*9.5mm,12.7mm,16mm) |
BWG27*3/8” 1/2” 5/8”(0.40mm*9.5mm, 12.7mm,16mm) | |
BWG26*1/2” 5/8” 3/4”(0.45mm*12.7mm,16mm,19mm) | |
BWG25*1/2” 5/8” 3/4”(0.50mm*12.7mm,16mm,19mm) | |
BWG24*1/2” 5/8” 3/4”(0.55mm*12.7mm,16mm,19mm) | |
BWG23*1/2” 5/8” 3/4”(0.60mm*12.7mm,16mm,19mm) | |
BWG22*3/4” 1” 5/4”(0.70mm*19mm,25.4mm,32mm) | |
BWG21*3/4” 1” 5/4”(0.80mm*19mm,25.4mm,32mm) | |
BWG20*3/4” 1” 5/4”(0.90mm*19mm,25.4mm,32mm) | |
BWG19*3/4” 1” 5/4”(1.0mm*19mm,25.4mm,32mm) | |
Mechanical Properties | 1>Ordinary Steel Strips σb≥65-75kg/mm2(650-750Mpa),Elongation:δ5≥3%-5% 2>Ordinary Steel Strips σb≥75-85kg/mm2(750-850Mpa),Elongation:δ5≥4%-6% 3>High Quality Steel Strip High intensity,good capability,σb≥85-1000kg/mm2(850-1000Mpa)Elongation:δ5≥5-8% |
Surface Treatment |
Galvanized,Black or as demand |

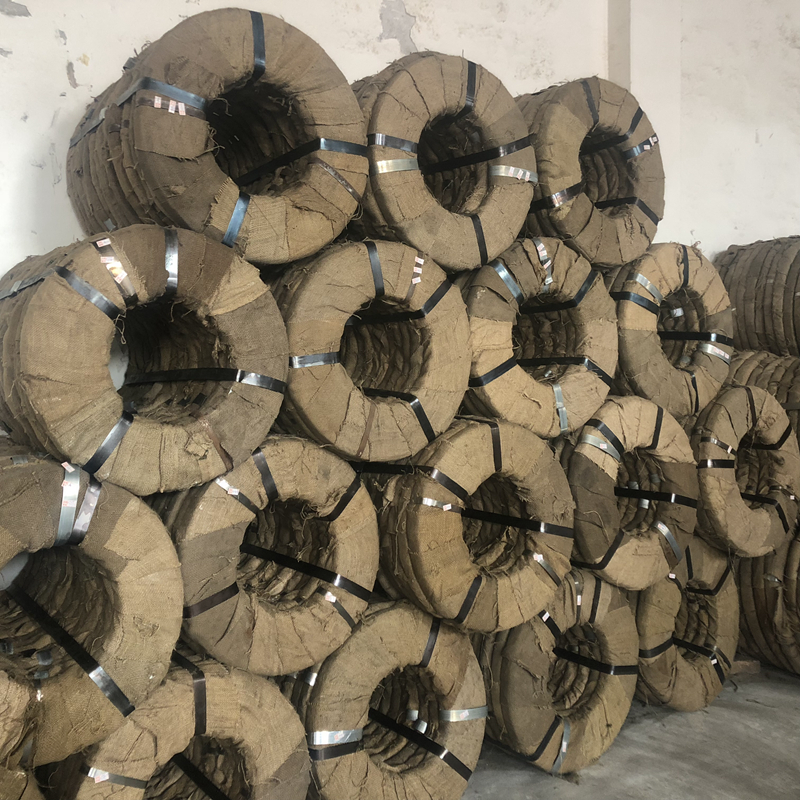

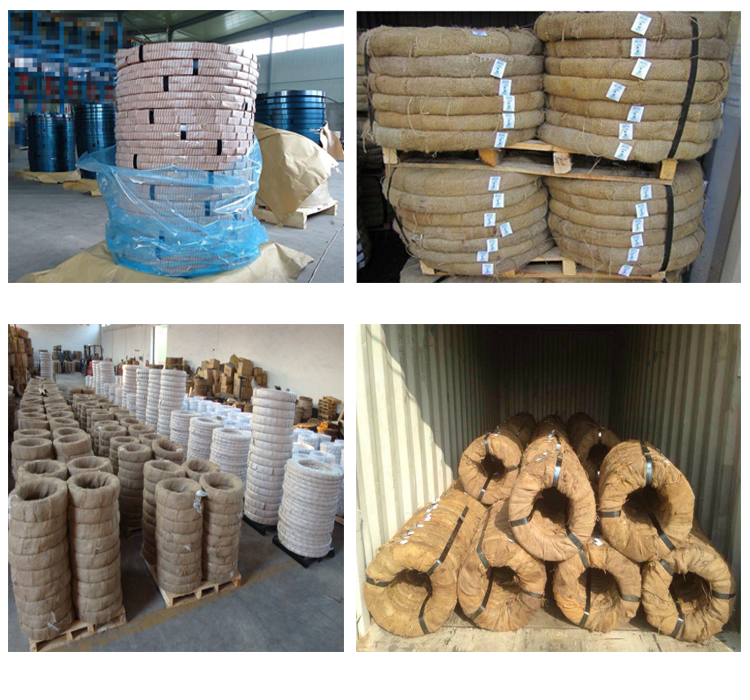

Package Type | Inner is humidity-proof wax paper,Medium is plastic film.Outer is sackcloth and compound paper packing.Delivered in wooden pallets or iron pallets,we can pack as per customer’s order. |
Application | Steel Packing Strap is widely used in ordinary carbon structured or high quality carbon structured steels via cold rolled,electric heat and blue and paint-baked.It is applicable for bundling and packing of wood,paper,cotton spinning,glass,stone,steels,weld tube and so on large objects. |
Tolerances |
Width
| ≤31.75mm | ±0.10mm |
>31.75mm | ±0.13mm | ||
Thickness | ≤0.40mm | ±0.015mm | |
>0.40-0.70mm | ±0.020mm | ||
>0.70-1.30mm | ±0.025mm | ||
Remark:The thickness of the steel strip does not include the coating or the thickness of the wax |
