High Voltage Glass Suspension Insulator (LXP-100)

  • High Voltage Glass Suspension Insulator (LXP-100)
  • High Voltage Glass Suspension Insulator (LXP-100)
  • High Voltage Glass Suspension Insulator (LXP-100)

High Voltage Glass Suspension Insulator (LXP-100)

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 30-90 Days
    Packaging: Carton, Wooden case, Sack
    Transportation: Ocean,Land
    Place of Origin: Fuzhou, China
    HS Code: 85461000
    Port: FUZHOU

Basic Info

Model No.: Glass Suspension Insulator(LXP-100)

Product Description

High Voltage Glass Suspension Insulator (LXP-100)

Standard glass insulators ( glass power line insulators) breaking load between 40kN and 240kN, Frequencies up to 100 Hz are supported. Temperature range is between -60°C and +50°C. The green glass insulators are made of an insulating element,it is not rare glass insulators, a cap and a pin. The cap and pin are made of high-strength hot galvanized cast-iron, with corrosion- resistant coverage, it can be of the type ball-socket or clevis-tongue.The lock, a split-pin is made of stainless steel or phosphor bronze. we also have sale LXP-70 and LXP-120.

Advantages of Glass Disc Insulator

1. It has very high dielectric strength compared to porcelain.

2. Its resistivity is also very high.

3. It has low coefficient of thermal expansion.

4. It has higher tensile strength compared to porcelain insulator.

5. As it is transparent in nature the is not heated up in sunlight as porcelain.

6. The impurities and air bubble can be easily detected inside the glass insulator body because of its transparency.

7. The surface of the glass insulator has high mechanical strength,it profect the surface from cracking.Compared with porcelain insulator,the aging process is much slower.

8. Glass is cheaper than porcelain.

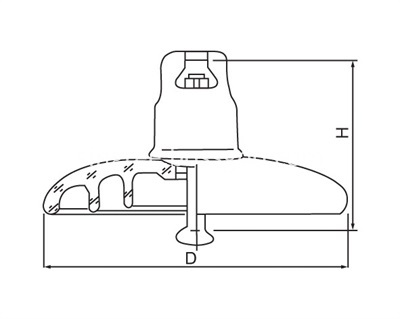

Currency Designation U100B/146 U100B/127
Designation LXP-100 LXP2-100
Diameter D,mm 255 255
Spacing H,mm 146 127
Creepage L,mm 320 320
Socket Soupling,mm 16 16
Mechanical Falling Load,KN 100 100
Mechanical Routine Test,KN 50 50
Wet Power Frequency withstand voltage,KV 40 40
Dry Lighting Impulse withstand voltage,KV 100 100
Impulse Puncture Voltage,PU 2.8 2.8
Power Frequency Puncture Voltage,KV 130 130
Radio Influence Voltage,μv 50 50
Corona Visual Test,KV 18/22 18/22
Power Frequency Electric arc voltage,KV 0.12S/20KA 0.12S/20KA
Net Weight per unit,KG 4 4

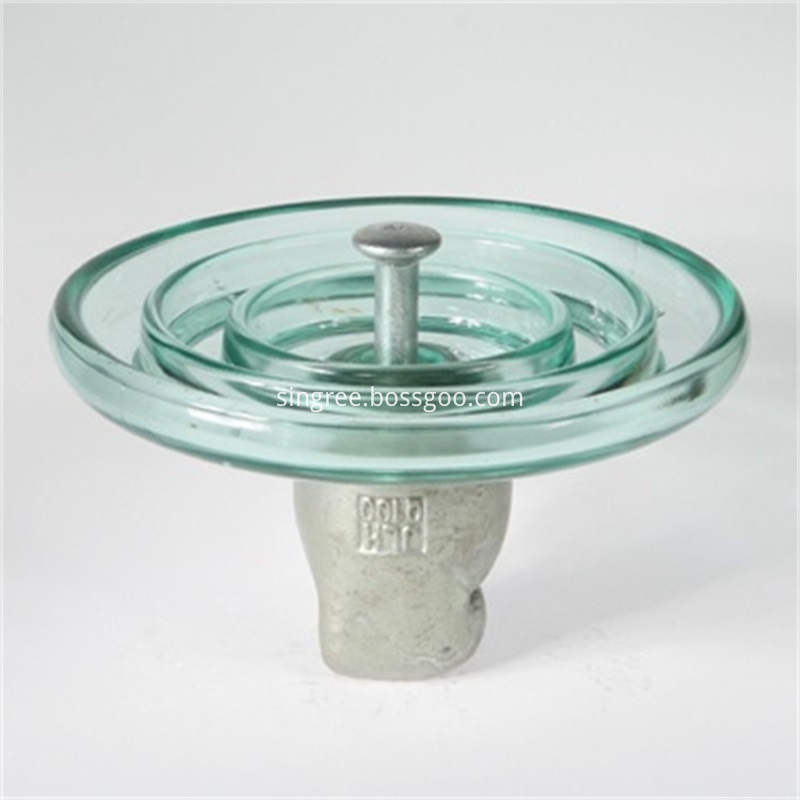

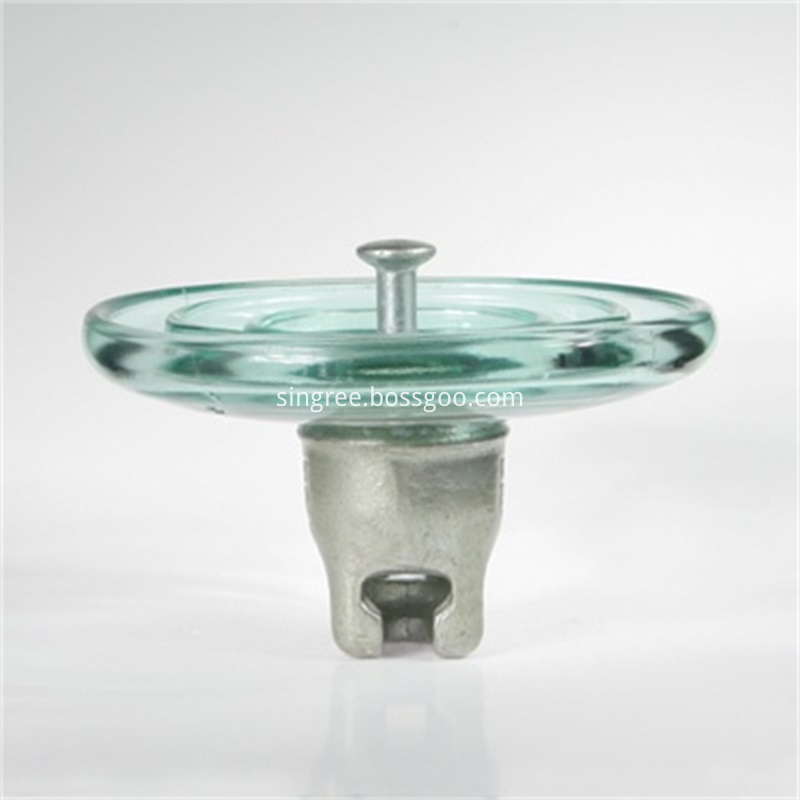

LXP-100 glass insulatorLXP-100 insulatorLXP-100 insulator image

Our Services

1. Small orders accepted
2. Fast producing time, prompt delivery
3. International approvals
4. Reply promptly in 24 hours
5. Best price


1. Q: How about payment terms ?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
2. Q: Do you have some videos where we can see the line producing ?
A: Yes, we can provide some videos for reference.
3. Q: Are you a Manufacture Factory ?
A: Yes. We are the direct manufacture factory, and our factory has specialized in insulator,arrester, power fitting,etc.
4. Q: How long is producing time ?
A: Normally it will take about 30 days for production.
5. Q: What is the standard of package ?
A: For small capacity, we use carton, but for big capacity, we will use strong wooden case for protection or double inner packs in a master carton.
6. Q: How do you make sure your good quality ?
A: We use the best raw material , and every single product will go through a series of strict test.
