Home > Products > Insulated Heating Alloy > Buy 2018 new Foton 4x2 refrigerated vans truck

Buy 2018 new Foton 4x2 refrigerated vans truck

Buy 2018 new Foton 4x2 refrigerated vans truck

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: naked, waxing in bulk ship or Ro-ro shipment
    Productivity: 5000pieces/year
    Brand: JDF
    Transportation: Ocean,Land
    Place of Origin: Hubei, China (Mainland)
    Supply Ability: 200pieces/month
    Certificate: ISO, CCC, CE
    HS Code: 8705309000
    Port: Shanghai,Tianjin,Shenzhen

Basic Info

Emission Standard: Euro 4

Horsepower: <150hp

Bearing Capacity: Medium

Transmission Type: Manual

Car Type: Van

Certification: CE, RoHS, CCC, ISO9000

Fuel: Diesel

Engine Type: 4 Stroke

Payload: 20T

Condition: New

Air Conditiong: Equipped

Brake: Air Brake

Cabin: Straight Head ,single Row With Air Condition

Max Speed (km/h): 110

Min. Temperature(°C): -18

Tire Numbers: 6

Rating Mass(kg): 1495

Box Size: 4085X1750X1750

Full Mass(kg): 4330

Outline Size(L×W×H) (mm): 5995X1900,1950X2900

Horse Power(HP): 130

Displacement(ML): 2780

Product Name: Buy Foton 4x2 Refrigerated Vans Truck

Product Description

Buy 2018 new Foton 4x2 refrigerated vans truck


Foton 4x2 refrigerator van truck

This type FOTON Aoling refrigerated truck, adopts Foton original chassis, single row metal coating luxurious driver cab, Euro 4 Cummins 130hp engine, 5 speed tramission, 5ton rear bridge, 700-16 tyre, oil brake, clutch booster, power steering, fuel heating system, etc.

The insulation van truck dimension(L*W*H) is 4085*1750*1750(mm), adopting both exterior and interior with stainless steel sheets, and the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.

Non-independent cooling unit, choose to install Korea Hanya DT-150S model,the temperature of the van can reach 18 degree below zero, we can adjust the temperature at the driver cab.

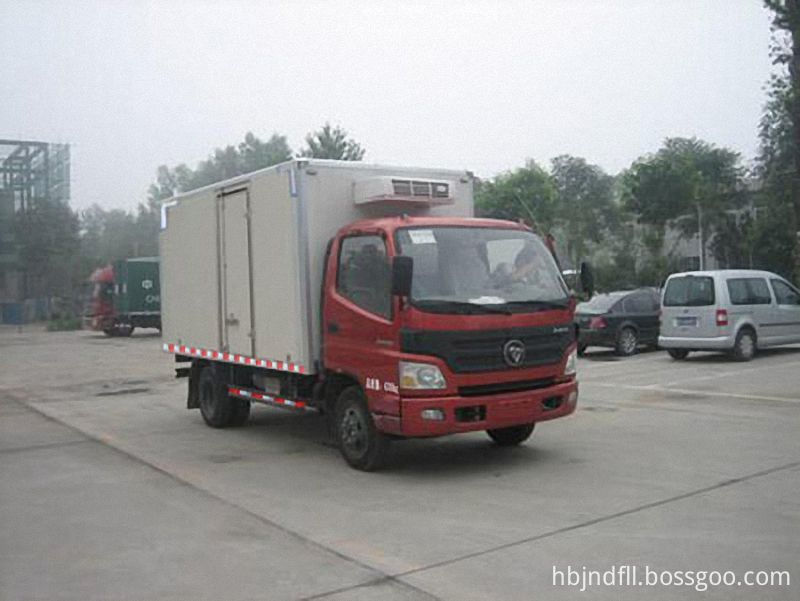

Refrigerated Truck 7

FOTON Aoling 4m length refrigerated van truck
Total mass(kg) 4330 Curb mass(kg) 2705
Rated mass(kg) 1495 Chassis model BJ1049V9JD6-FB
Driver cab 2 Max speed(km/h) 110
Approach/departure angle (°) 23/13 Front/rear suspension(mm) 1085/1550
Overall dimension(mm) 5995X1900,1950X2900 Cargo body dimension(mm) 4085X1750X1750
Tyre 6.50R16,7.00R16,6.50-16,7.00-16 Tyre nos. 6
Front tread(mm) 1530,1730 Rear tread(mm) 1425,1485,1590
Wheelbase(mm) 3360 Springs 7/4+5,3+1/6+7
Emission standard GB17691-2005,GB3847-2005 Euro 4 Fuel type Diesel
Engine model Manufacturer Displacement Power
ISF2.8s4129T FOTON Cummins 2780 96

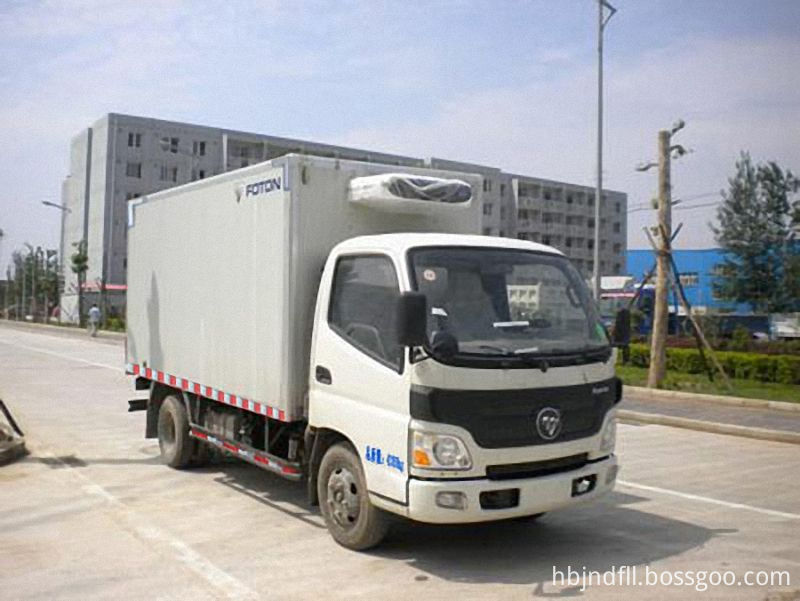

Refrigerated Truck 6


A refrigerator truck is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.


The refrigerator truck is a sealed container truck whose tank body is made of sealed plates which is composed of plastic composite board, glass epoxy, and polyurethane foam heat-protection materials. It can transport frozen food, dairy products, fresh vegetables and fruits, or vaccine medicines.

Applications of Refrigerator Truck
The refrigerator truck is a sealed container truck whose tank body is made of sealed plates which is composed of plastic composite board, glass epoxy, and polyurethane foam heat-protection materials. It can transport frozen food, dairy products, fresh vegetables and fruits, or vaccine medicines.

Features of Refrigerator Truck
1. The chassis is manufactured by some domestic famous companies, such as China Dongfeng Automobile Company, China Dongfeng Motor Limited Company, China Dongfeng Automobile Limited Liability Company, FAW Jiefang, Sino Truck, Beiqi Foton Motor, Hualing Heavy-duty Truck, Northern Benz, Shaanxi Automobile, Jianghuai Automobile, and Jiangling Motors.
2. The refrigerator truck is mainly composed of heat protection container, refrigerating unit, and temperature recorder. Among them, heat protection container and refrigerating unit can be customized.
3. Meet hook, ventilation slot, and other parts are available upon request.


Truck supplier introduction


Truck customers


We can produce 300kinds of different special vehicals for customers:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck,sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Certificate Of Our Truck

Faq Of Our Trucks

  • 1
  • 2
  • 3
  • 4
  • 5
 Established in 1995, Hubei Jiangnan Special Automobile Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of Special Automobiles. We are located in Suizhou City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.

Covering an area of 150000 square meters, we now have over 1000 employees and an annual sales figure that exceeds USD100 Million. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001, CCC and Government High Technology Enterprises certificates.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Southeast Asia, South America, Southeast Asia, Africa, Oceania, the Middle East and Eastern Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
