20-45 meters steel light pole for stadium lighting

20-45 meters steel light pole for stadium lighting

    Unit Price: 180~20000 USD
    Payment Type: T/T,L/C
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: by client required
    Productivity: 1500 tons/month
    Brand: FUTAO
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 1500 TONS/MONTH
    Certificate: ISO9001,SASO,CE,BV

Basic Info

Model No.: FT-GG-006

Product Description


20-45 meters steel light pole for stadium lighting

company information

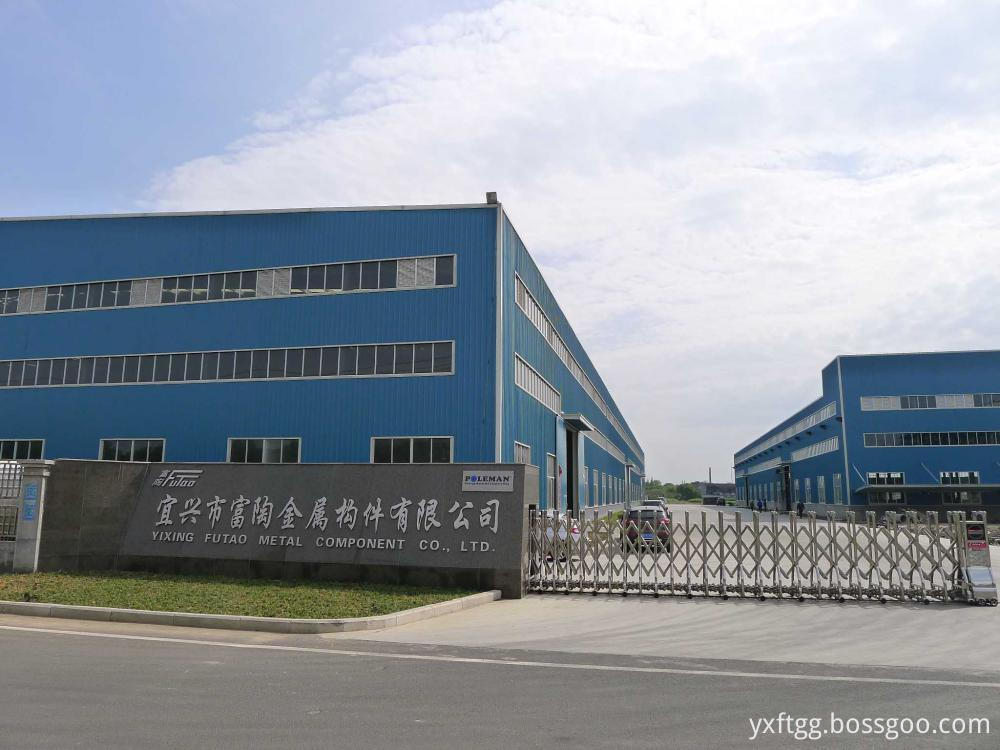

YiXing FuTao metal components co.,LTD is Established in March 2000 in the beautiful and rich YiXing city with a convenient transportation, and located in 1 KM far from HeQiao town,YiXing FuTao metal components co.,LTD, with the coverage area of 53000 square meter and annual output value reaching 200million yuan,is attached to JiangSu FuTao Group.Our company is specialized in steel poles production.

Our company has a lot of experience in design and production.Possess american PLS-Pole software .The company main products are Electric steel pole.High mast lighting pole.Communication tower.lamp pole etc.the company is equipped with advanced manufacturing facilities.We own a Belgium LVD company large-sized numerical control hydraulic pressure folding machine with once folding length 16,000mm and the thickness 2-25mm. We also equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding ,annual output has reached 20000tons Our manufacturing process has been ISO9001:2000 certified, our company products quality have a good reputation in the world.

Product Description

Height:From 20 m to 60 m

Suit for:Airport ,seaport,plaza,stadium ,square,highway,street way etc

Shape:Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material:Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion:+- 2%

Power:400W- 5000W

Light panel:Various figure of slection ,material with hot dip galvanization steel frame ,stainless steel ,special aluminum plate

Light Extension:Up to 30 000 m²

Lamp &Luminaire:Projector generally to be applied with safety grade IP65

Luminaire with high pressure sodium lamp of long lift and high lighting efficiency ,or metal halide lamp with high CRI

Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute

Euqiped e;ectromagnetism brake and break –proof device,manual opeation applied under power cut

Electric appliance control device:Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter away from the pole through wire

Time control and light control could be equipped to realize full-load lighting mode and part lighitng mode

Surface treatment:Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles:Insert mode,innerflange mode,face to face joint mode .

Design of pole:Against earthquake of 8 grade

Wind Speed:160 Km/Hour

Minimum yield strength:355 mpa

Minimum ultimate tensile strength:490 mpa

Max ultimate tensile strength:620 mpa

Standard:ISO 9001

Length of per section:Within 14m once forming without slip joint

Welding:We has past flaw testing.Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness:1 mm to 30 mm

Packaging & Shipping

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data


.

FAQ

1. Payment:

(1)Telegraphic Transfer:30% advance payment, balance before shipment

(2)Telegraphic Transfer:30% advance payment, balance against copy of documents

(3)Letter of Credit: at sight

2. Lead Time: 2 weeks after confirmed order

3. Delivery way: by sea


Production Process:Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Production process and Finished products

  • 1
  • 2
  • 3
  • 4
  • 5
 Yixing Futao Metal Structural Unit Co. Ltd. is com manded of Jiangsu Futao Group. It is located in the beach of scenic and rich Taihu Yixing with good transport service. The company is well equipped with advanced manufacturing facilities. We own a large-sized numerical control hydraulic pressure folding machine with once folding length 16,000mm and the thickness 2-25mm. We also equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding, we could manufacture all kinds of steel poles and steel towers. Our main products: high & medium mast lighting, road lighting, power poles, sight lamps, courtyard lamps, lawn lamps, traffic signal poles, monitor poles, microwave communication poles, etc. Our manufacturing process has been ISO9001 certified and we were honored with the title of the AAA grade certificate of goodwill" Presently 95% of our products are far exported to Europe, America, Middle East, and Southeast Asia, and have enjoyed great reputation from our customers, So we know the demand of different countries and different customers. We are greatly honored to invite you to visit our factory and cheerfully look forward to cooperating with you.
