Home > Products > Phosphor Bronze Series > Liquid Filled Pressure Gauge with Front Flange

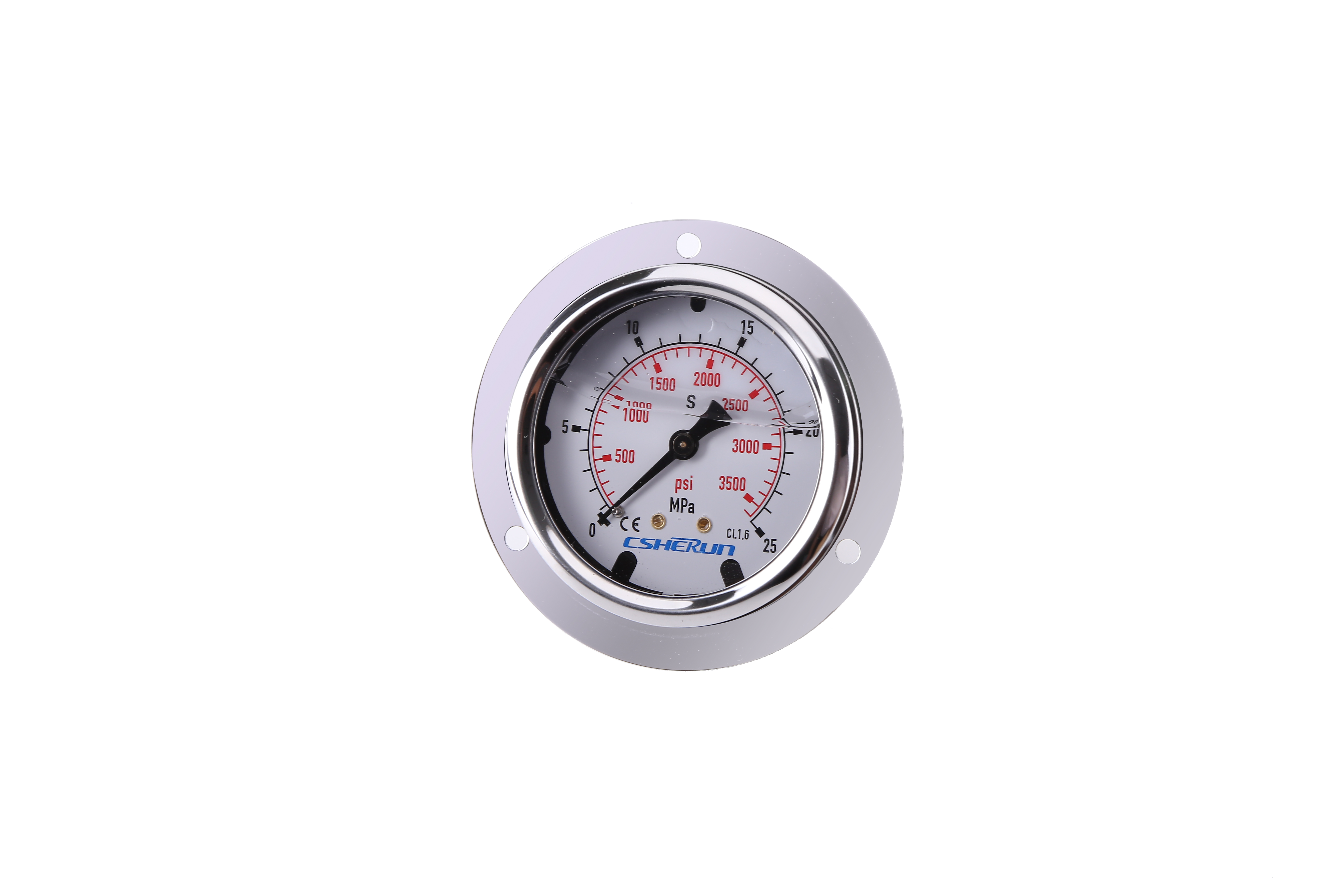

Liquid Filled Pressure Gauge with Front Flange

  • Liquid Filled Pressure Gauge with Front Flange
  • Liquid Filled Pressure Gauge with Front Flange

Liquid Filled Pressure Gauge with Front Flange

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days
    Packaging: Cartons
    Productivity: 2, 000, 000
    Brand: csherun
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 2, 000, 000
    Certificate: CE
    HS Code: 90268090000
    Port: Shanghai

Basic Info

Model No.: BC12.32

Product Description

Model NO. BC12.32
HS Code 9026809000

BS Series
Stainless Steel 1.4301 (AISI 304) Case, brass movement & connection


Technical Data

BS Series
Stainless Steel 1.4301 (AISI 304) Case, brass movement & connection


Technical Data
Size : 2.5"(63mm) , 3"(75mm), 4"(100mm), 6"(150mm)
Measuring Range : compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar )
Dial : Aluminum
Window : polycarbonate, glass
Pointer : Aluminum
Ring : Stainless Steel 1.4301 (AISI 304)
Case : Stainless Steel 1.4301 (AISI 304)
Front Flange Stainless Steel 1.4301 (AISI 304)
Filling : Glycerin or Silicone
Movement : brass
Socket : brass
Bourdon Tube : phosphor bronze C-tube for vacuum to 1,000 psi,
Spiral tube wound for 1,000 psi to 15,000 psi
Connection : 1/8", 1/4", 3/8", 1/2" NPT, PT, BSP,G thread
Mounting : bottom and center back with surface, flush mount and U-clamp
Accuracy : 2.5", 3" ( CL1.6 ), 4", 6" (CL1.0)
Operating Temperature Limit : -20 ~ 60°C ( -4 ~ 140°F )
Application : water, air, gas, oil and working media not corrosive to wetted parts
Img 3627

Changshu Herun Import & Export Co.,Ltd

 Changshu Herun Import and Export Co., Ltd. was established on July 23, 2009. Its registered place is located in Hetai Village, Xinzhuang Town, Changshu City. The legal representative is Zhang Junbin. The scope of business includes the import and export of goods and technologies, except for the goods and technologies that are restricted or prohibited by the state; meters, mechanical equipment and parts, hardware, electrical equipment, arts and crafts, clothing, shoes and hats , Luggage, computers and accessories, auto parts, building materials, textiles, metal materials, department store sales.

Company Info

  • Company Name: Changshu Herun Import & Export Co.,Ltd
  • Representative: Junbin Zhang
  • Product/Service: Nitrogen Generator , Pressure Gauge Movement , Pressure Gauge , Thermomanometer Movement , Special Gas Regulator , Cable Accessories
  • Capital (Million US $): 500000RMB
  • Year Established: 2009
  • Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
  • Export Percentage: 41% - 50%
  • Total Annual Purchase Volume (Million US $): US$1 Million - US$2.5 Million
  • No. of Production Lines: Above 20
  • No. of R&D Staff: 21 -30 People
  • No. of QC Staff: 51 -60 People
  • OEM Services Provided: yes
  • Factory Size (Sq.meters): 10,000-30,000 square meters
  • Factory Location: Xinzhuang Town, Hetai Village, Changshu City
  • Contact Person: Mr. Jackie Zhang
  • Tel: +86-512-65726409
